Clear Build - Retroarms/Brushless

Description

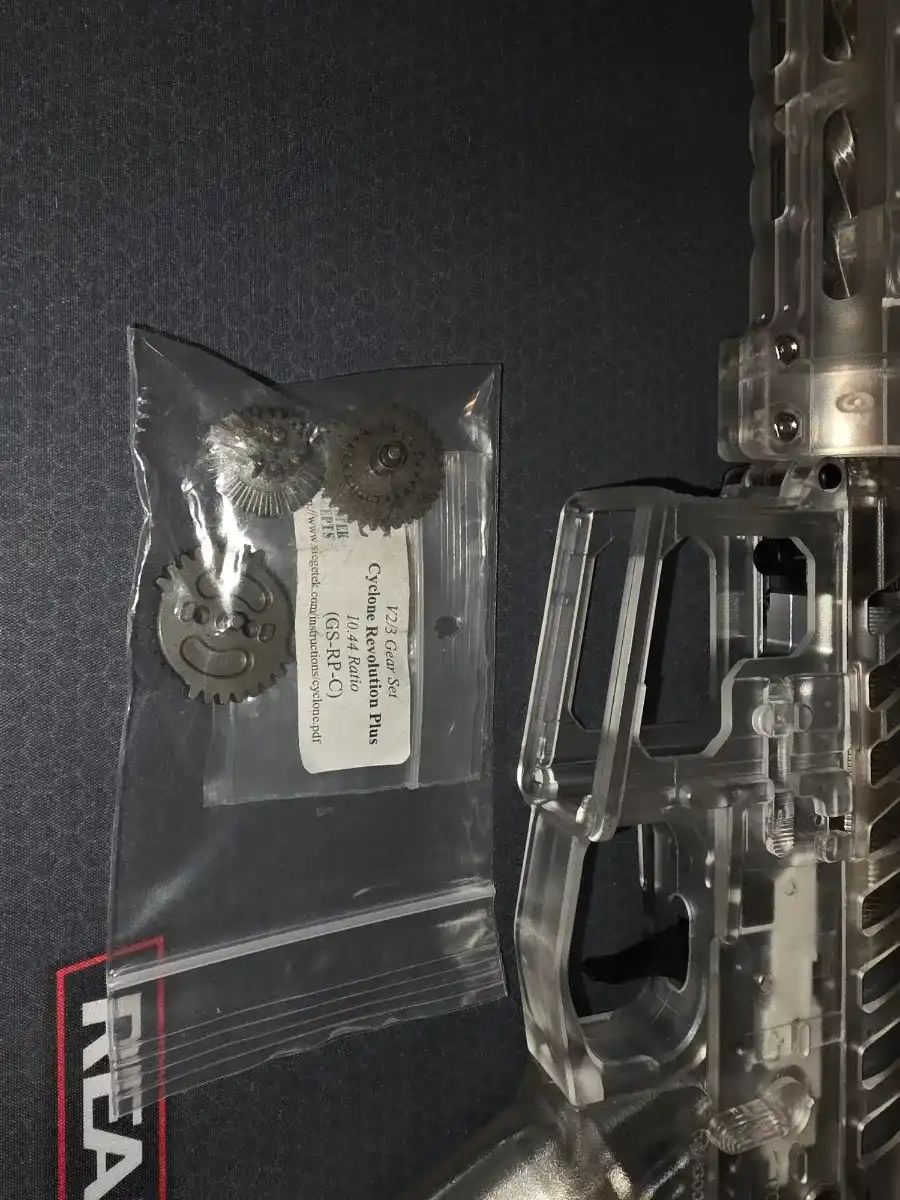

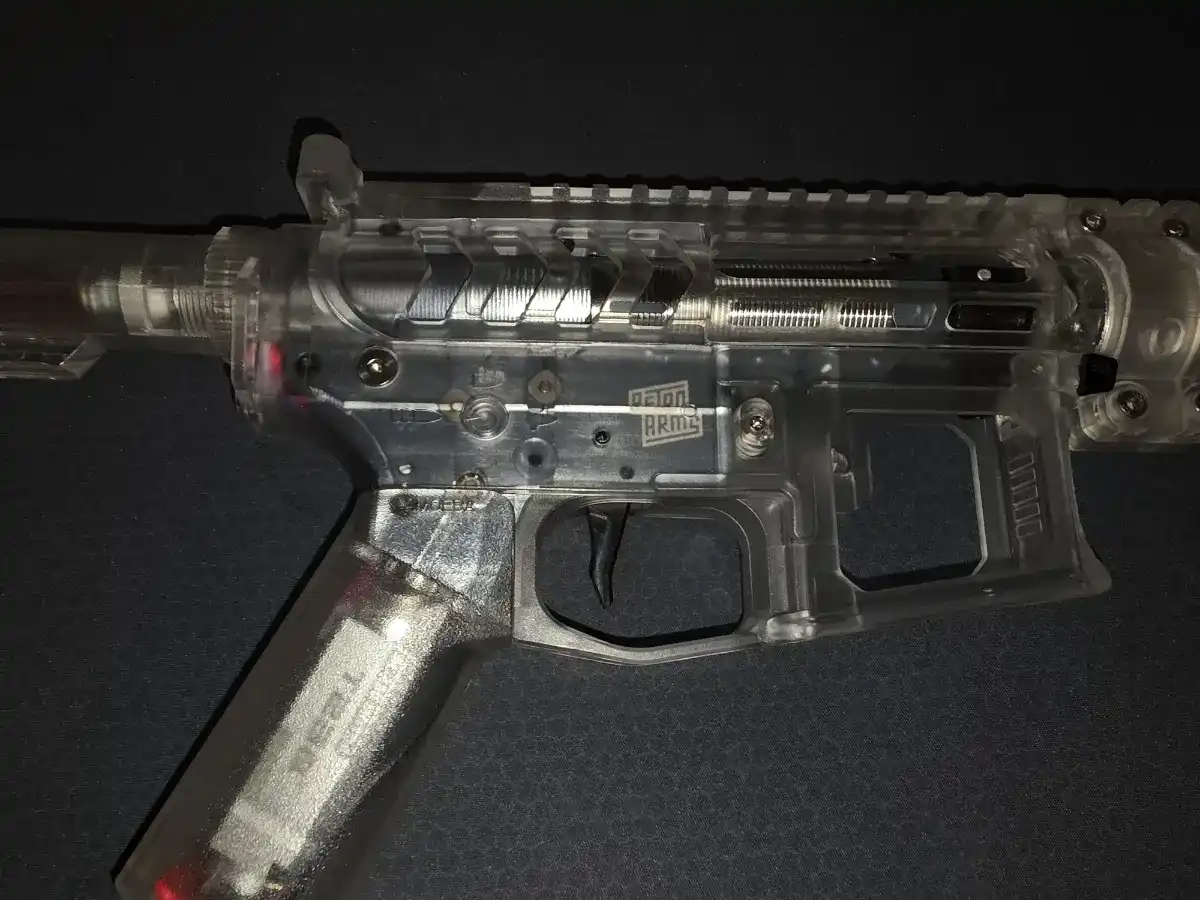

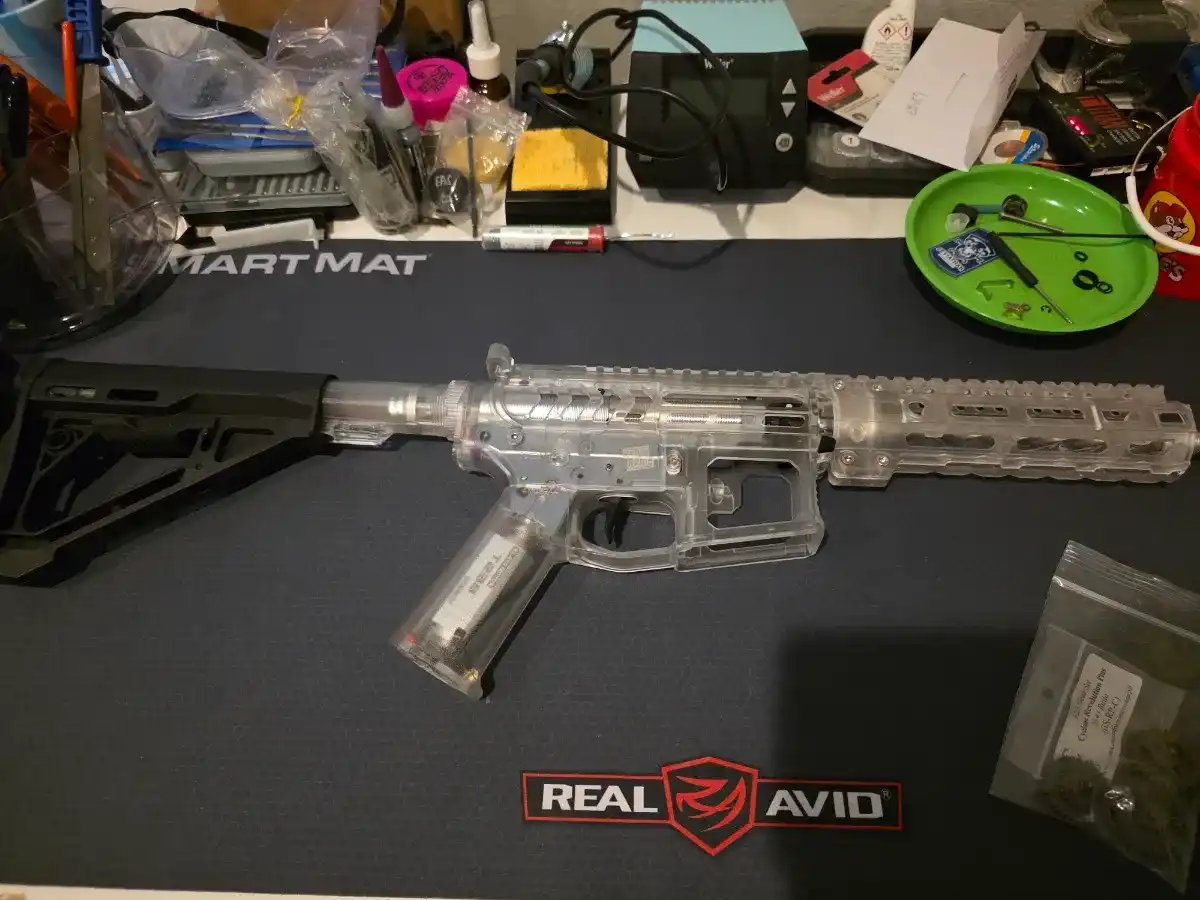

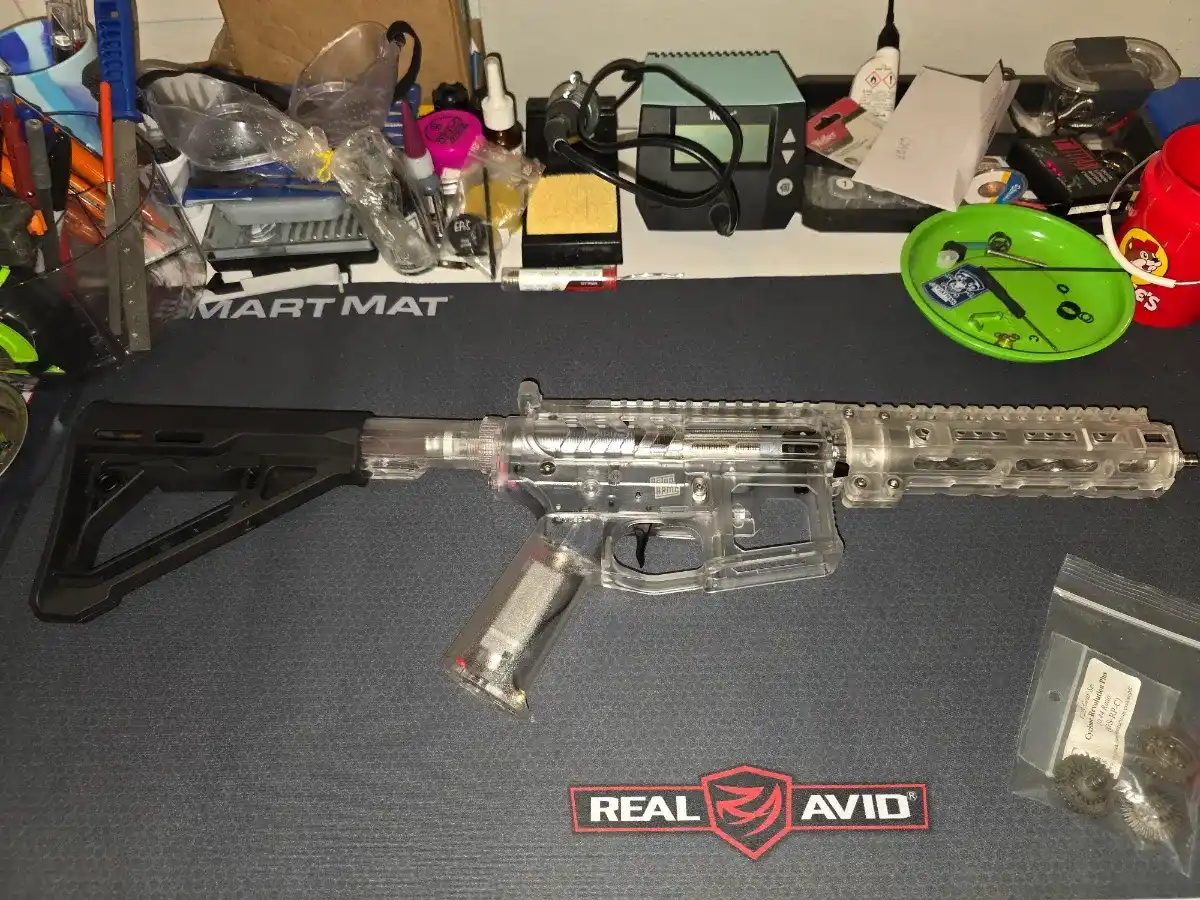

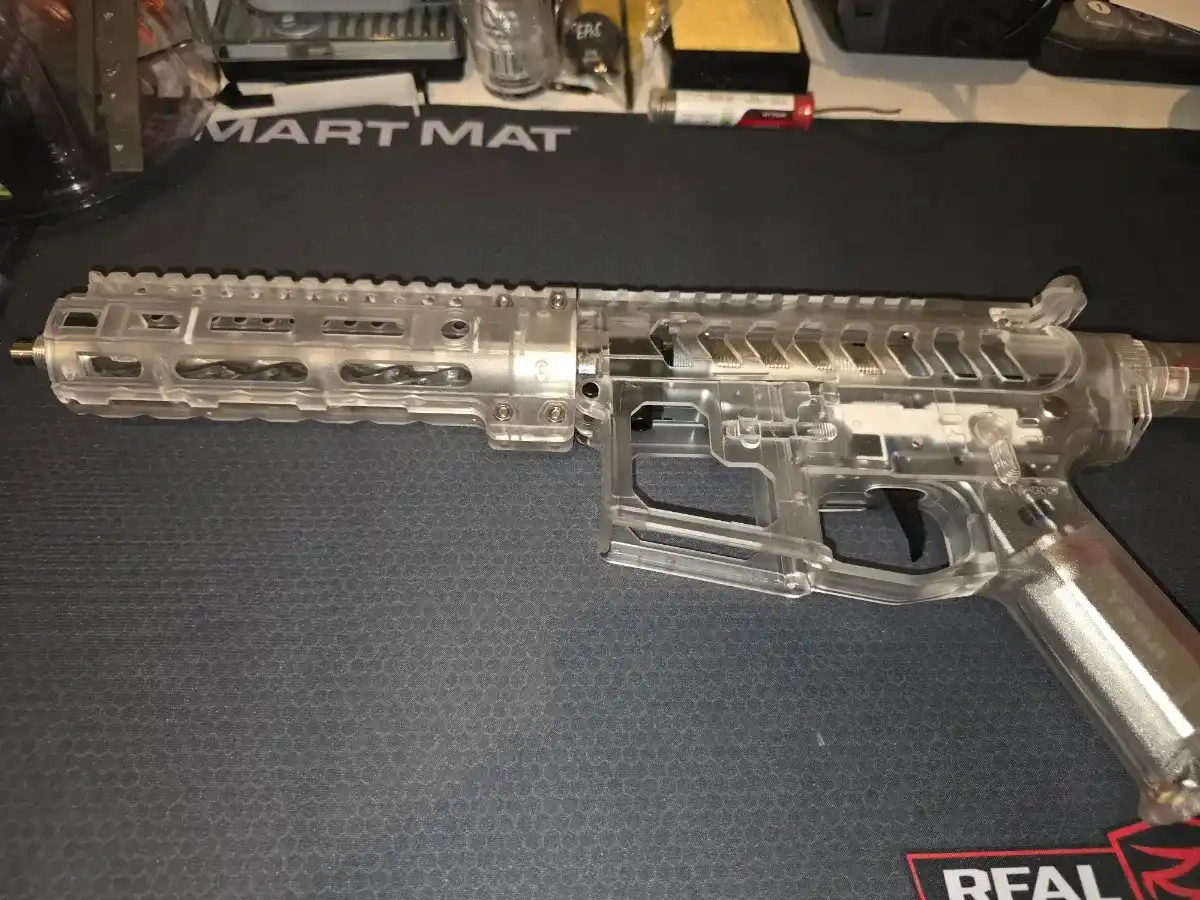

Build below, recently built, never played in a game just shot to build/tune Retro Arms 2025 Split Gear Box (has lateral adjusters installed) Jefftron Leviathan / Adjustable trigger 6.02 160mm Real Deal Stainless barrel I think it's a v3 LT tdc rotary hop, or its a KWA mk3 stock hop up, 4uantum bucking/nub - there is a clear hopup on evike if you wanted to go full clear was the plan T238 39k adjustable Brushless (PRE-PRODUCTION MODEL | This motor does NOT meet the standard outside size spec for 480 motor sizes, its a pre-production model purchased from Umbrella Armory sales, its longer on the end and the motor grip had to be modified to fit, this motor will not drop in to other guns without grip modification!) Pinion is a warhead, motor tower is Umbrella Armory. Airsoft Mutations Jaeger Prime Piston Airsoft Mutations Whisper Mk3 Piston Head Airsoft Mutations BSS Cylinder Head Maxx Adjustable Nozzle (Set 21.22 right now, seats perfectly with bucking) Currently running 13:1 with a 4 tooth short stroke. (Rocket gears) Selector is programmed to semi-safe-safe, the clear fire selector isn't super tight so when shooting it jiggles the selector Plate and moves it into full auto sometimes, problem solves itself with a better selector but I kept it clear. The clear sling Plate and buffer tube have been modified to fit the wiring, If you adjust the motor height you must loctite it, the bottom part that seats the motor has been modified and there is very little threading on the adjustment screw, it will move when firing if not properly secured after adjustment. Motor is running a little over half speed on the adjustment screw, much more and you have overspin. For an additional $120 I can install the Siegetek DSG gears pictured and install a m160 spring (Will produce about 320ish FPS on .25s and almost 1J). Gearbox is setup for DSG with 2 jcage Bearings on the Bevel gear and anti-rot Bushings for spur/sector. Currently at 1.2J and 345FPS running .25s with 13:1 (4T SS) and a m120 spring. Willing to accept trades for HPA engines/grips
